Coating Systems
MicroSpray nozzles integrate into complete coating platforms — from compact benchtop R&D rigs to high-volume production lines. Choose a standard configuration or work with us on a custom design.

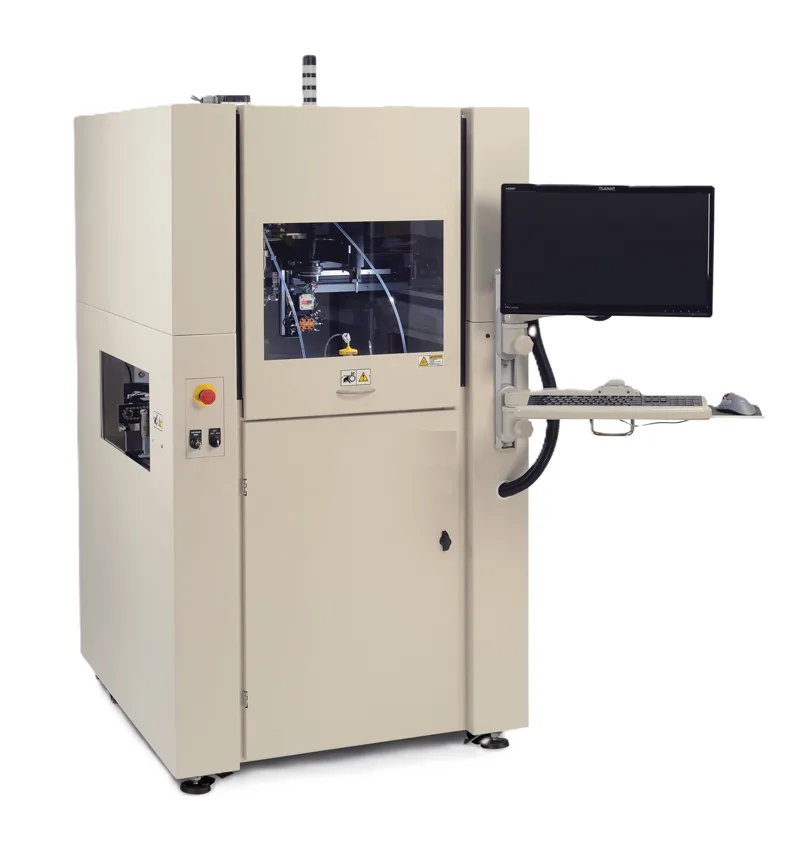

MicroSpray UltraFlex System
Automated coating, dispensing & potting — now for low-viscosity materials
Fully programmable multi-axis automation for conformal coating, dispensing, and potting, with a factory-integrated MicroSpray ultrasonic nozzle option for low-viscosity precision that conventional spray and dispense valves can't match.
- 0.025 mm (0.001 in.) servo-driven positioning accuracy
- Up to eight independently configured tools per system
- Coating, dispensing, and potting on one platform
- Integrated MicroSpray ultrasonic nozzle for low-viscosity fluids

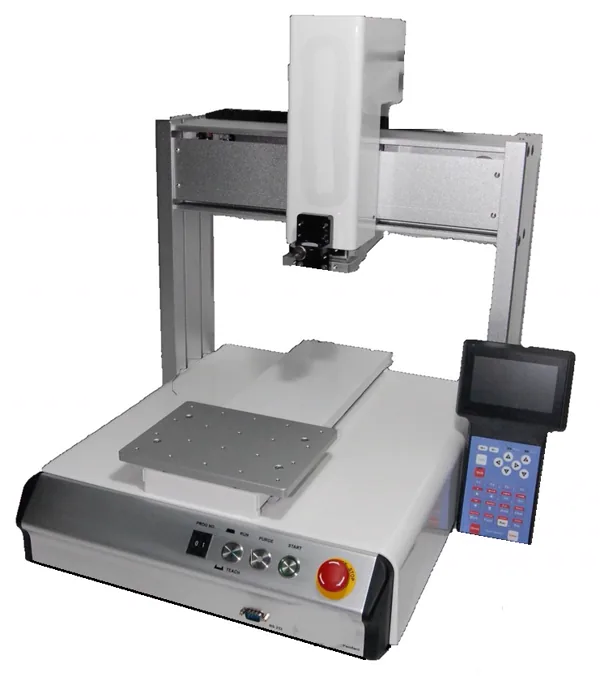

Benchtop R&D System
Benchtop robots in four work-area sizes for automated ultrasonic spray coating
Benchtop Cartesian robots configured with a MicroSpray ultrasonic nozzle, syringe pump and valve system for precision-controlled spray placement and thin-film uniformity. Dispense routines are set up in minutes with the teach pendant, or generated directly from imported DXF files.
- Four work areas, 300 × 300 × 100 mm to 600 × 500 × 150 mm
- ±0.008 mm repeatability, 800 mm/s maximum speed
- DXF / CAD import and teach pendant programming
- 100 programs of up to 50,000 points each
- 8 inputs / 8 outputs, USB and RS232
- CE, RoHS and WEEE approved

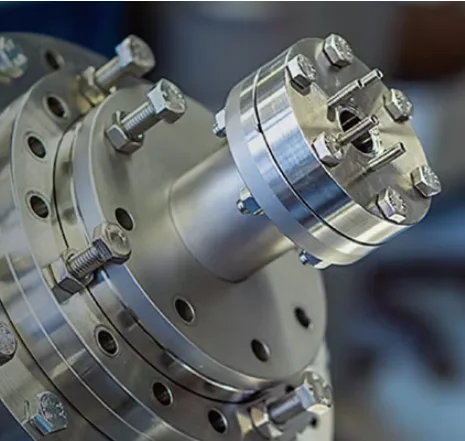

Vacuum-Compatible Platform
In-chamber deposition without disturbing your vacuum
MicroSpray nozzles atomize acoustically — no air or carrier gas — so spraying doesn't disturb chamber vacuum, enabling in-situ deposition at roughly millitorr operating pressures for PVD, MOCVD, and spray pyrolysis processes. Systems mount through the chamber wall on KF or CF flanges and include a proprietary flow-restriction device to control liquid delivery under low pressure.
- Zero air or carrier gas — chamber vacuum stays undisturbed
- KF or CF chamber flanges, plus optional threaded front shroud
- Proprietary flow-restriction device for liquid control under vacuum
- Cooling/heating ports for environments above ~150°C or below −20°C
- Thermocouple ports for monitoring internal temperature

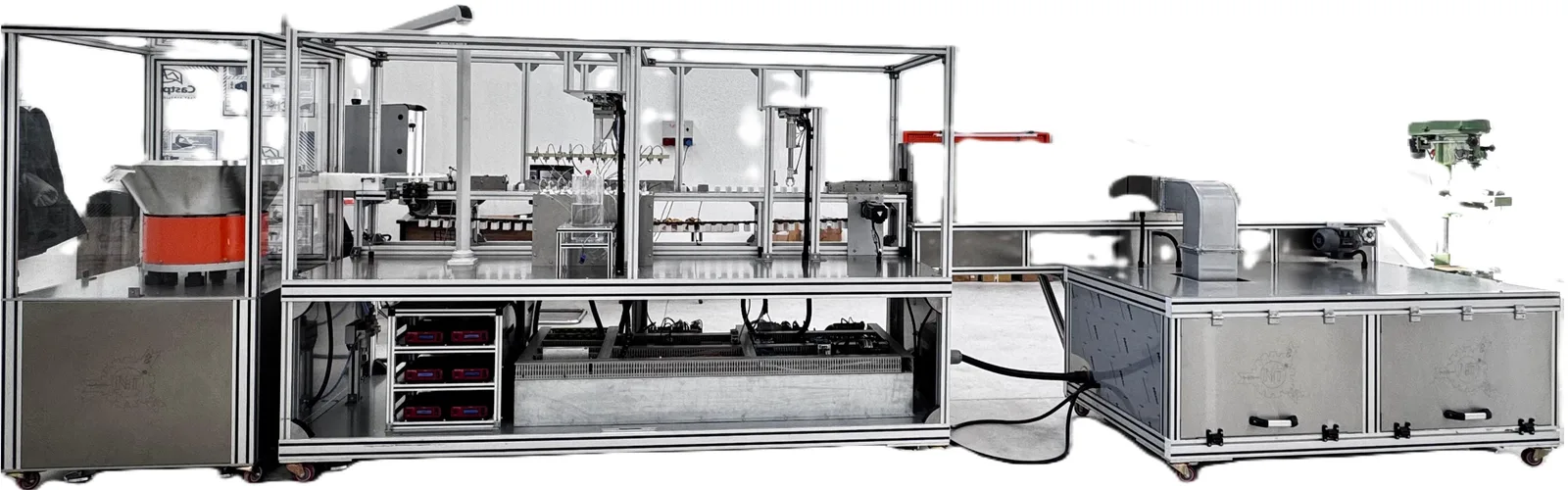

Custom Integration
A system designed for you — or our nozzles integrated into yours
MicroSpray will custom design and build a complete coating system to your process specification — or our engineers will work alongside your team to integrate MicroSpray nozzles into your own equipment, from custom mounts and enclosures to control interfaces. Previous projects include robotic arm integrations, cleanroom-compatible housings, and OEM nozzle sub-assemblies.
- Complete turnkey systems or nozzle-only integration support
- Direct engineering engagement — no sales intermediary
- NDA available for proprietary process development
- Feasibility study before any commitment
- Prototype-to-production transition support
All systems include a MicroSpray generator, nozzle assembly, and tubing. Contact us for configuration details and pricing.
