MEDICAL APPLICATION
GLP-1 Auto-Injector Siliconization
Uniform silicone coating inside auto-injector cartridges using Dow Liveo 366 35% GLP-1 and compatible medical-grade surfactants — delivering consistent plunger glide force, precise dose delivery, and long-term device reliability.
The Challenge
Auto-injectors demand exacting siliconization to ensure uniform lubrication of cartridge interiors. Traditional methods — dip coating, air spray, or solvent-based flooding — result in uneven coverage, sagging, pooling, and bubble formation that compromise plunger glide force, dose delivery accuracy, and product shelf-life stability. Liveo 366 35% GLP-1 and similar medical-grade silicone fluids are especially prone to inconsistent deposition at low coating weights.
Our Solution
MicroSpray ultrasonic nozzles deliver finely atomized droplets of Liveo 366 35% GLP-1 (Dow Corning 360 Medical Fluid, 1000 cSt) deep into the narrow geometry of auto-injector barrels and cartridges. The airless, low-velocity spray eliminates blow-back while acoustic atomization produces the precise droplet size distribution needed for thin, homogeneous silicone films at coating weights from 0.1 to 2.0 mg/cm². The system is equally compatible with Liveo 366 35% Dimethicone NF Emulsion, Kolliphor HS 15, Kolliphor ELP, and other non-ionic medical surfactants. Custom formulation compatibility can be evaluated on request.
About Liveo™ 35% Medical Fluids
Liveo™ 35% Medical Fluids (such as Liveo™ 365 and Liveo™ 366) are water-dilutable emulsions containing nonionic emulsifiers and 35% NF-grade Dimethicone. They are widely used as hydrophobic lubricants for medical devices, parenteral containers, and for siliconizing glass syringes, metals, and plastics. These silicone-based emulsions are specifically engineered to provide excellent lubrication, release characteristics, and form a stable hydrophobic film. Common applications include the lubrication of catheter guidewires, syringe barrels, and medical device cutting edges.
Product Demos

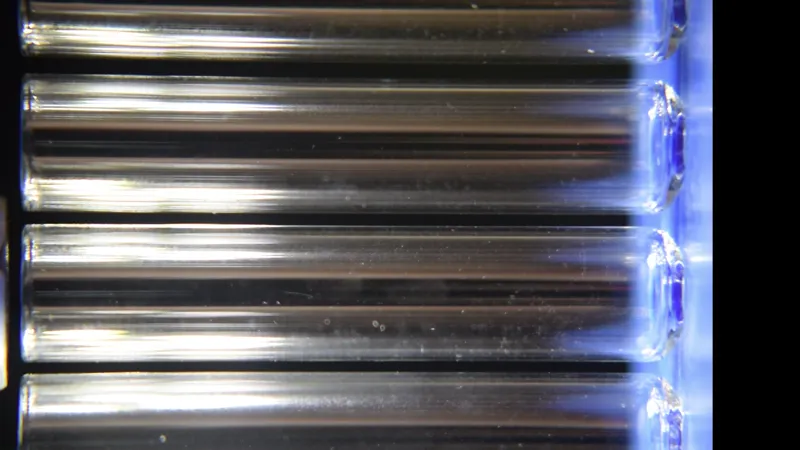

Auto-Injector Cartridge Siliconization — Liveo 366 35% GLP-1
Ultrasonic spray siliconization of an auto-injector cartridge interior using Liveo 366 35% GLP-1.
Why Ultrasonic Spray?
- ✓Uniform Liveo 366 35% GLP-1 film even in blind holes and narrow cartridge geometries
- ✓Coating weights from 0.1–2.0 mg/cm² with ±5% repeatability lot-to-lot
- ✓Over 85% material transfer efficiency versus under 50% for dip coating
- ✓No pooling, sagging, or bubble formation — eliminates common siliconization defects
- ✓Compatible with Liveo 366 35%, Kolliphor HS 15, Kolliphor ELP, and custom formulations
- ✓Frequency-controlled atomization (60–120 kHz) for 13–30 µm droplets and 20 nm–100 µm film thickness
- ✓Fully automatable with programmable spray patterns, motion profiles, and inline QC
- ✓Applicable to cartridges, pre-filled syringe barrels, glass vials, plunger stoppers, and custom geometries
Recommended Equipment
Zero Air Nozzle
Airless operation prevents blow-back when coating deep cartridge interiors with silicone fluids
View details →Focused Nozzle
Precision focal point enables targeted Liveo 366 35% GLP-1 deposition inside narrow barrel geometries
View details →Achieve uniform Liveo 366 35% GLP-1 siliconization with repeatable coating weights. Request a technical consultation.
