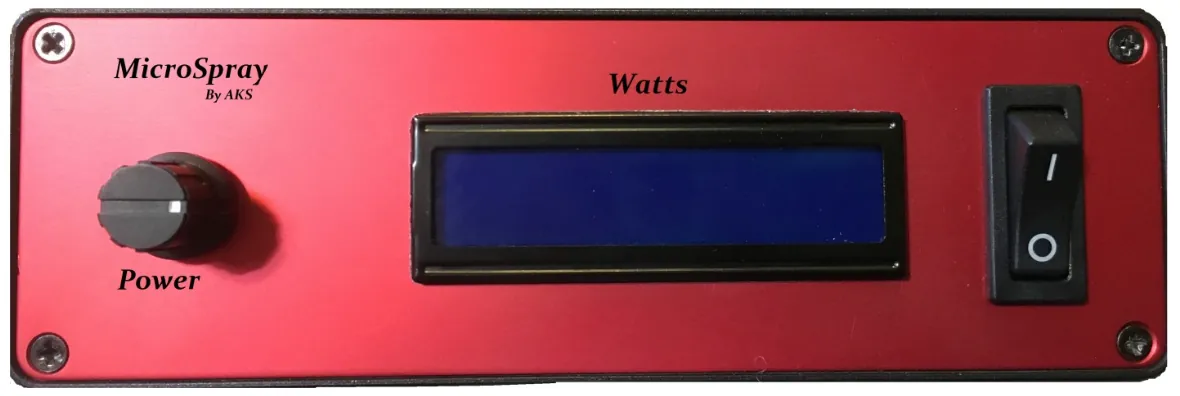

Broadband Ultrasonic Driver
The MicroSpray Broadband Ultrasonic Driver powers and controls MicroSpray ultrasonic nozzles across a 25–120 kHz tracking range, continuously tracking each nozzle's resonant frequency and compensating automatically for thermal drift and liquid-load variation. The free-standing AC version accepts 90–260 VAC, 50/60 Hz input power with a standard U.S. male-end line cord.
- 25–120 kHz tracking range
- 90–260 VAC, 50/60 Hz
- CE certified
- Adaptable to RS-485 comms
Specifications
- Input voltage
- 90–260 VAC50/60 Hz · standard U.S. line cord
- Frequency tracking range
- 25–120 kHzBroadband auto-tracking
- Maximum power — 120 kHz
- 5 W90% of liquids atomize below 5 W
- Maximum power — 48 / 60 kHz
- 10 W95% of liquids atomize below 8 W
- Dimensions (H × W × L)
- 2.25 × 7 × 9 in5.7 × 17.8 × 22.9 cm
If your application requires more power, a different nozzle configuration or some special adaptation, please let us know — we’re here to provide solutions.
External I/O & Control
External trigger input
The external trigger input remotely energizes and de-energizes power to the nozzle, bypassing the driver's internal circuitry.
Accepted control signals
- N/O (normally open) switch or relay contact
- N/C (normally closed) switch or relay contact
- 3–11 V (AC or DC, polarity insensitive)
- 12–48 V (AC or DC, polarity insensitive)
- 90–250 V (AC or DC, polarity insensitive)
Alarm output
The alarm output provides nozzle-error status through normally open or normally closed relay contacts built into the driver. In an error condition the contacts CLOSE for N/O operation and OPEN for N/C operation.
RS-485 communications
The driver can be adapted to run with RS-485 communications. Contact us with your control-system requirements.
