ULTRASONIC NOZZLE

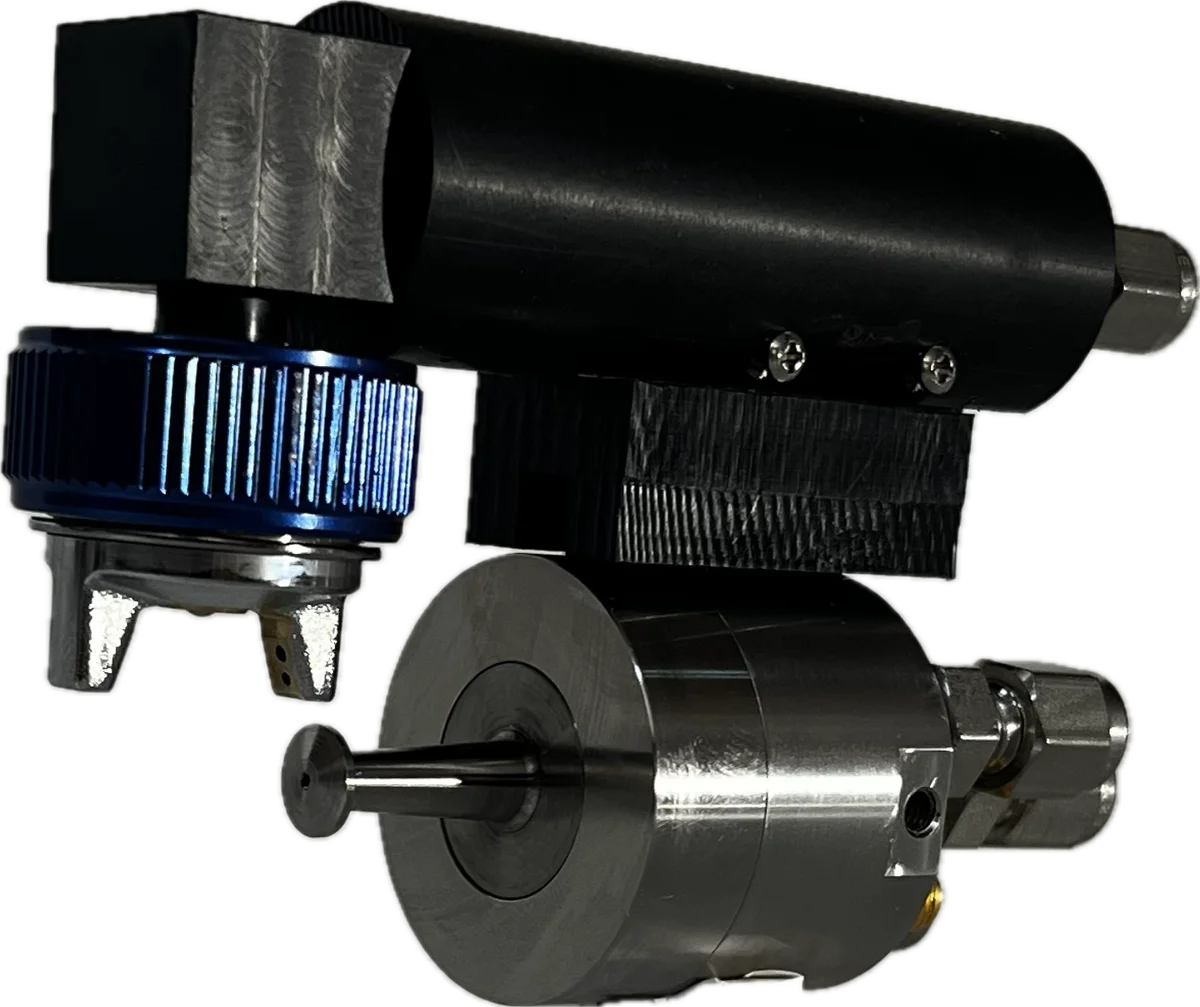

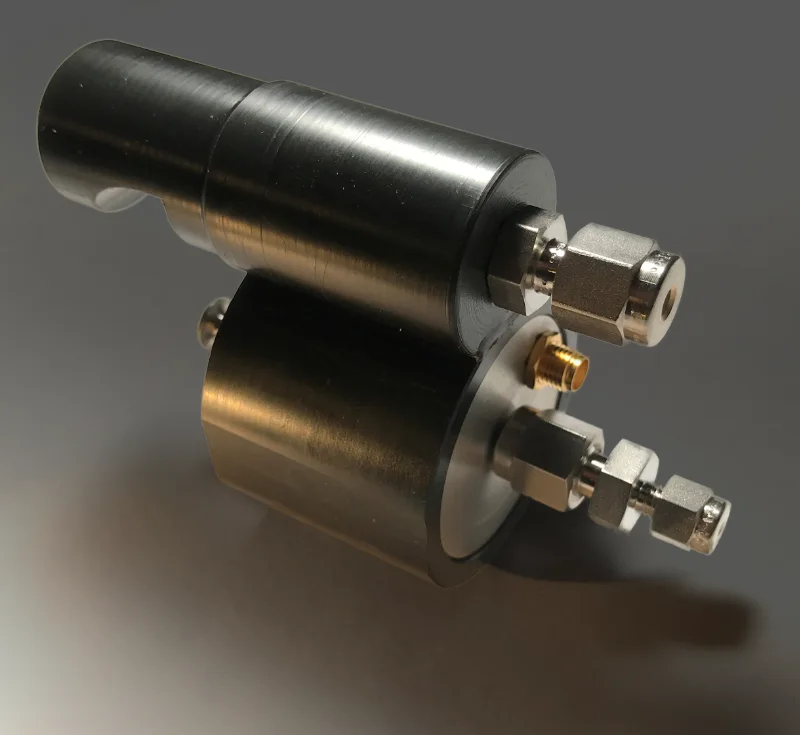

SprayBlade™ Air Knife
The SprayBlade™ Air Knife is a high-performance attachment that integrates a flat jet air deflector with an ultrasonic atomizing nozzle, forming a laminar, high-velocity air stream that reshapes the mist into a broad, fan-shaped spray. As atomized droplets exit the nozzle, they are entrained into the air stream, which spreads the mist laterally while preserving a tight droplet size distribution. The resulting spray forms a sheet-like coating zone with controllable width and energy, ideal for scalable deposition on flat or curved substrates.
Spray Width
6–12 inches (15–30 cm)
Spray Pattern
Fan-shaped, sheet-like
Nozzle Compatibility
60 kHz or 120 kHz
Air Velocity
Adjustable via pressure input
Scalability
Linear array capable
Fluid Compatibility
< 10 cP
How This Ultrasonic Spray Nozzle Works
The SprayBlade™ Air Knife system is an ultrasonic spray shaping attachment that uses a flat air jet deflector to reshape the ultrasonic mist into a broad, fan-shaped spray. The focused air stream delivers increased kinetic energy to the droplets, helping them overcome boundary layer resistance and adhere more effectively to low-wettability surfaces. Tunable air velocity allows precise control of droplet impact force to match surface energy and substrate geometry, promoting film formation on high-energy or textured surfaces. Multiple units can be aligned in a linear array for unlimited coating widths, making the system well suited for roll-to-roll and inline manufacturing. The result is uniform, high-integrity coatings even in unstable ambient conditions, with stronger impact than vortex systems for applications requiring robust boundary-layer penetration.
Key Features
Adjustable Fan-Shaped Coverage
6–12 inch spray width for scalable wide-area coating.
Scalable System Architecture
Multiple units align in a linear array for unlimited coating widths.
Tunable Air Velocity
Precise control of droplet impact force to match surface energy and substrate geometry.
Enhanced Droplet Coalescence
High-velocity air stream promotes film formation on high-energy or textured surfaces.
Stronger Impact than Vortex Systems
Robust boundary-layer penetration for applications requiring greater droplet force.
Stable Operation in Turbulent Environments
Uniform, high-integrity coatings even in unstable ambient conditions.
Key Advantages
- Wide-area thin film coatings on flat or curved substrates
- Functional coatings for advanced materials and surfaces
- Fuel cells and energy device electrode fabrication
- Electronics and medical device coating
- Roll-to-roll and inline manufacturing integration
